 JBT Engineering offer an extremely large and varied range of New & Rebuilt Presses. Although we have a standard range of presses we understand that often a standard machine is not always exactly suitable for your needs - so we offer value added services which enable the machines to be modified - expanded and tailored to suit your requirements. JBT are able to provide upstream and downstream equipment  and even complete production lines. We not only have experience in rubber and plastics, we are also well versed in Aerospace, Drawing and forging presses, Foams, composites, ceramics and new materials development. This encompasses the food, medical and pharmaceutical industries.- talk to our sales team or send us an enquiry. If you have existing presses that need updating or repairs and maintaining then talk to us - let us know what you need and leave the rest to us - we are the UK's largest and most versatile press company. Our staff have been in this industry for over 300years accumulatively and our longest serving staff member has been with the company for over 27 years- we also have a range of Laboratory presses - these can be found here

  CLICK HERE TO email our team with your requirements

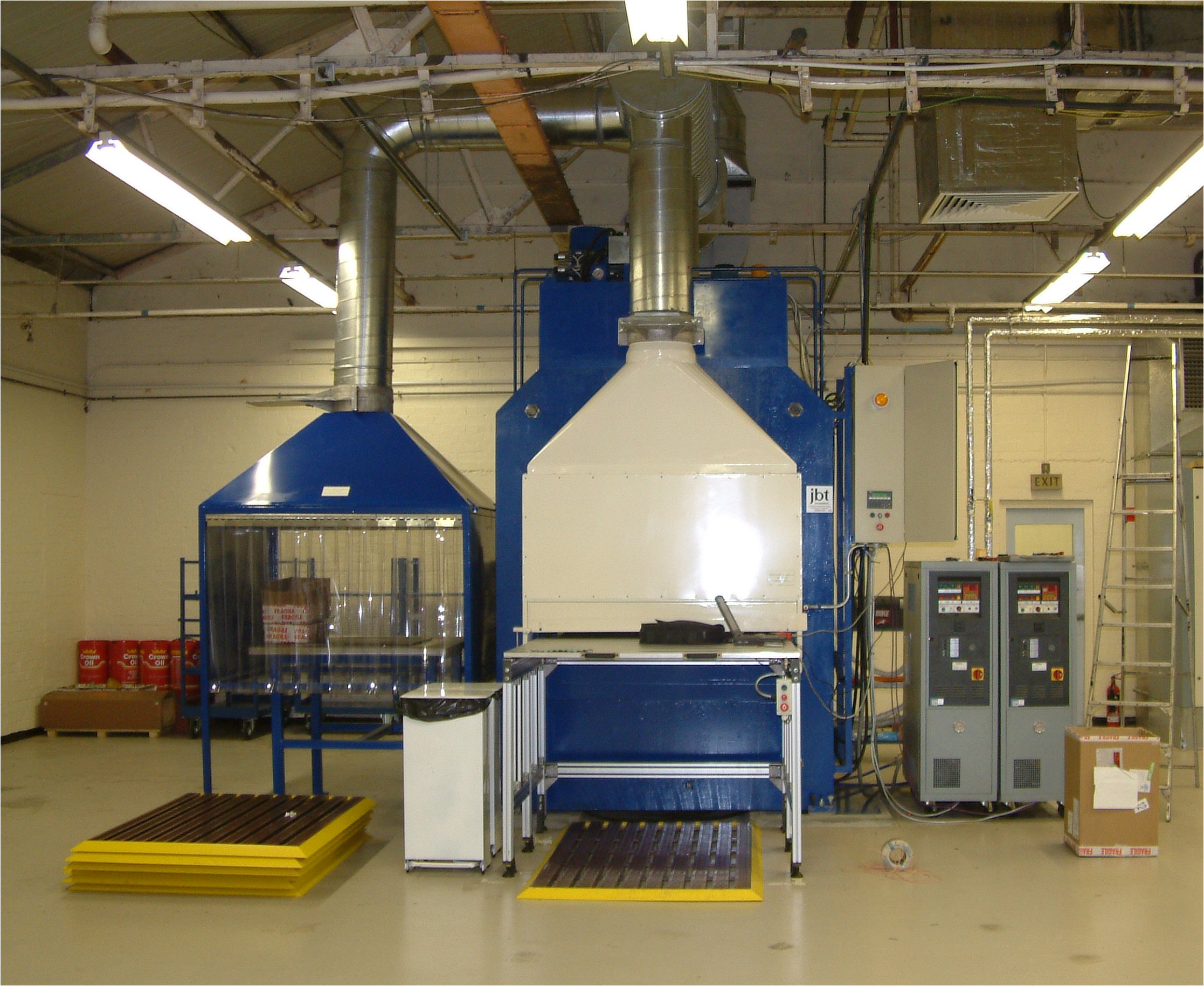

500Ton Downstroke press for Aerospace researchNew 500T Down stroke Press for Aerospace defence composites research and production.

This press has programmable Speed, Position, Tonnage. and Temperature. The heating is controlled via 2 x 300'c oil heaters with closed loop control. The press has a usable platen size of 1200mm square. Click on the picture for a larger view

1200 Ton Upstroke Multi-daylight Press

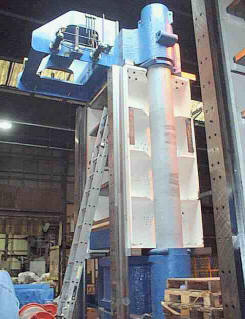

     1200Ton Upstroke press for Foam pad production - oil heated platens     1200Ton 4 Ram Upstroke Press during construction - in JBT Engineerings UK Factory

  • Slab sided Construction - Machined Steel Frames for rigid Strength
  • Leak free Hydraulics with low noise level
  • Semi-automatic or fully automatic control.
  • Platen types to suit your conditions (oil heated on example above)
  • Suitable for use with rubber, plastics, metal powders, ceramics etc



 600Ton Brake pad press + scissor lift and tool Handling For Canadian Market                     .
JBT 600T upstroke Multidaylight Press with lift and Tool Handling

Brake Pad Production Press

  • This press has 7 x electrically heated Platens
  • Platen size 750mm square approx.
  • The Upstroke ram delivers 600Tons force
  • Fast Approach speed of 0 -100mm sec
  • Pressing speed 0 -10mm second
  • Opening speed of 15-200mm second
  • Space saving Hydraulics mounted in the frame
  • Tool handling and service on Lift platform
  • Auto lift table (indexing to each platen)
  • Press controls via PLC with tool recipe software

80Ton Up-stroke Press with 1600 x 600 electric Heating platens     Small 80T press cell for Composites & Foams

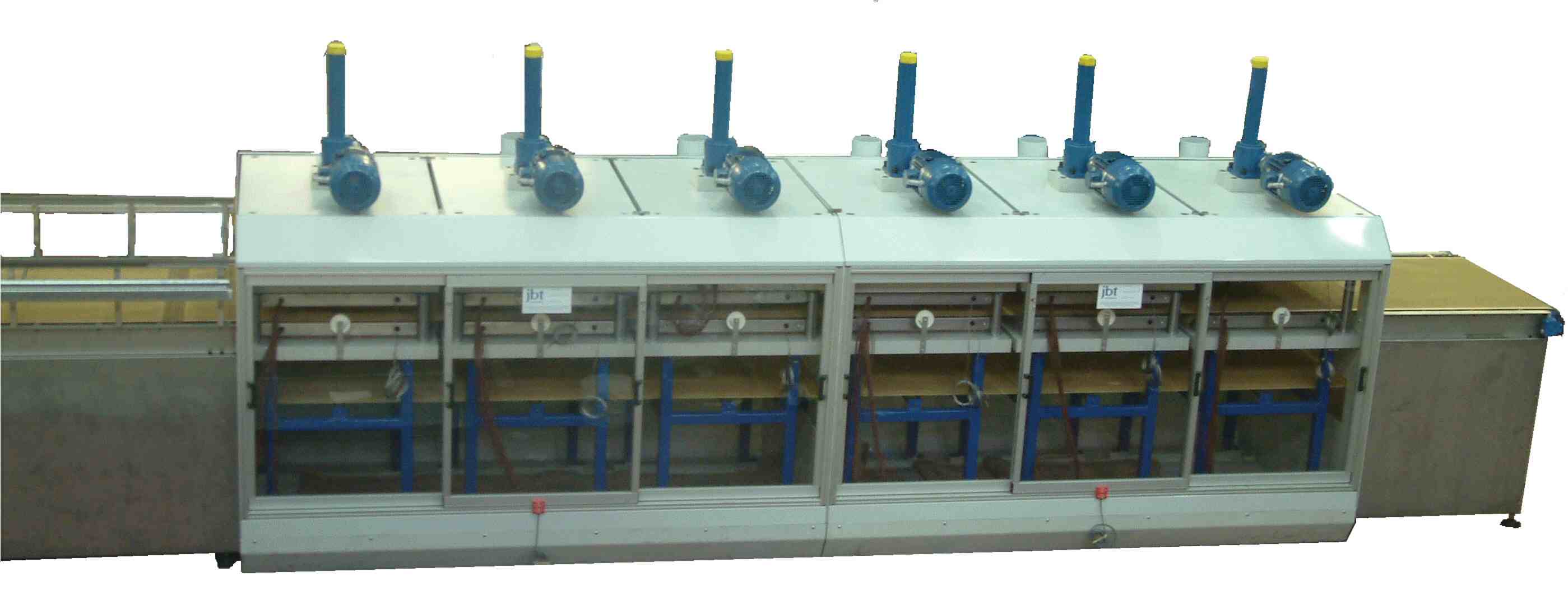

Electric Press line - Fibre / Automotive Industry

Special 10T electric screw press line for the manufacture of fibre blankets used in the motor industry

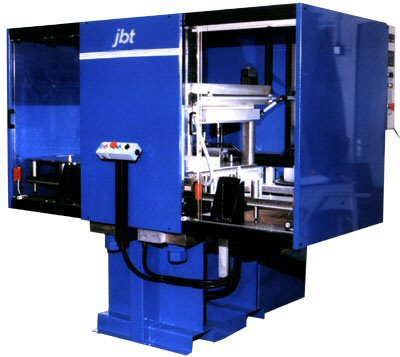

20 Ton Shuttle Press for Automotive Honeycomb production. This shuttle press is used in the production of specialist density Honeycomb for Impact resistance on automotive interiors



  2000 Ton Up-stroke tyre Press

A large multi daylight tyre press with core handling


 Email our team with your requirements

200-400 Ton upstroke Press range with low floor-space requirement , integrated hydraulics and smart energy efficient pump.

Space saving design with integrated hydraulics. This Range of JBT Presses start at 100T through to 400T

 Large Daylight Automotive Foams production

Pair of Downstroke presses for use in Automotive Interiors and Foam injection Process.
